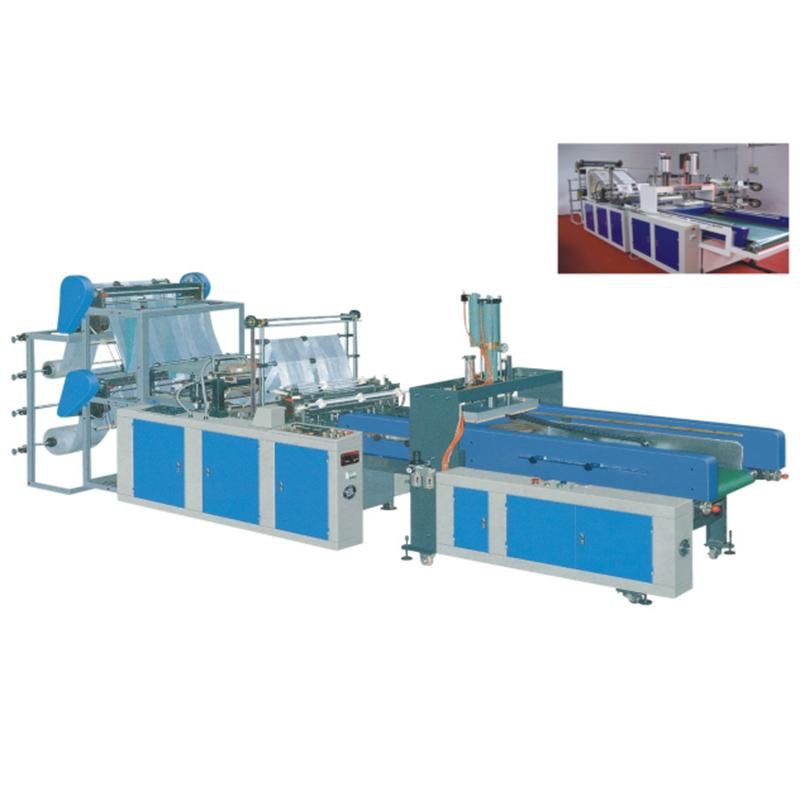

Automatic Vest Bag Making Machine

Automatic Vest Bag Making Machine

The Automatic Vest Bag Making Machine is designed for high-efficiency production of plastic vest bags commonly used in supermarkets, retail stores, and packaging distribution. The machine supports hot sealing and cutting of HDPE and LDPE plastic films and is suitable for continuous industrial manufacturing.
Send Inquiry

The Automatic Vest Bag Making Machine is designed for high-efficiency production of plastic vest bags commonly used in supermarkets, retail stores, and packaging distribution. The machine supports hot sealing and cutting of HDPE and LDPE plastic films and is suitable for continuous industrial manufacturing.


Equipped with a servo motor system and double feeding structure, the machine can complete sealing, cutting, and U-shape handle punching in one process, allowing fast and stable production of uniform vest bags.


This equipment is widely used by plastic bag factories, packaging manufacturers, and wholesalers supplying supermarket shopping bags.



Main Technical Parameters



Model

SHXJ-E600

SHXJ-E700

SHXJ-E800

Sealing and Cutting Length

150–260 mm

180–310 mm

200–360 mm

Sealing and Cutting Width

300–650 mm

300–650 mm

300–650 mm

Sealing and Cutting Thickness

0.015–0.04 mm

0.015–0.04 mm

0.015–0.04 mm

Bag Making Speed

(50–100) × 4

(50–100) × 4

(50–100) × 4

Air Pressure

5 kg/cm²

5 kg/cm²

5 kg/cm²

Motor Power

1.5 kW

1.5 kW

1.5 kW

Overall Dimensions (L×W×H)

5000×1200×1800 mm

5200×1300×1800 mm

5400×1400×1800 mm

 The Automatic Vest Bag Making Machine supports adjustable bag length and width to meet different production specifications.



Production Process



The machine processes plastic film rolls through an automated workflow:

Film roll feeding through the feeding system

Double feeding ensures stable material alignment

Heat sealing and cutting of bag body

U-shape handle punching and forming

Continuous production of connected vest bags



Key Features

Advanced sensors and control systems enable automatic feeding, sealing, cutting, and bag forming, reducing manual operation.

Four-channel production combined with high-speed servo motor rotation allows stable mass production for industrial bag manufacturers.

Users can adjust bag length, bag width, and sealing parameters to meet different vest bag specifications.





Applications



The machine is commonly used for manufacturing:






Supermarket vest bags







Retail shopping bags







Plastic packaging carry bags





FAQ



Q: What payment methods do you accept?

A: Standard payment terms are 30% T/T deposit and 70% balance before shipment.

Q: What trade terms are available?

A: We commonly support FOB, CIF, and EXW terms.

Q: What is the minimum order quantity?

A: The MOQ is one machine.

Q: What is the delivery time?

A: Production time is typically 30–45 days after deposit confirmation.

Q: How do you ensure machine quality?

A: Each machine is tested and inspected before shipment to ensure stable operation.

Q: What is the warranty period?

A: The standard warranty is 12 months after installation.

Q: How is the machine packaged for shipping?

A: Machines are wrapped with protective film and packed in export wooden crates.

Q: What materials can the machine process?

A: The machine supports HDPE and LDPE plastic film.

Q: Do you provide installation or technical support?

A: Yes, installation guidance, operation manuals, and remote technical support are provided.

Q: Do the machines have certifications?

A: CE certification can be provided according to export requirements.
