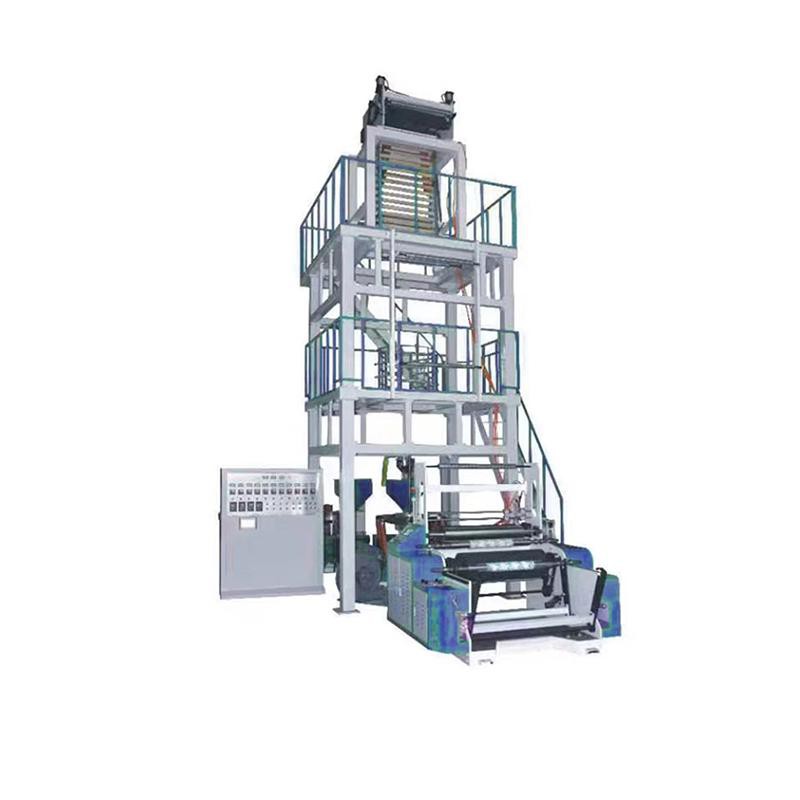

Why Global B2B Buyers Choose Our ABA Technology

The ABA co-extrusion system is designed to help film manufacturers optimize raw material usage while maintaining stable product quality in real production environments.

Core Layer (B): Can use 50%–70% recycled HDPE or CaCO₃ fillers depending on cost strategy and local material availability

Outer Layers (A + A): Made from virgin HDPE to ensure stable surface gloss, good tensile strength, and reliable printability

This structure allows manufacturers to reduce overall material cost while maintaining acceptable film performance for industrial packaging applications.

Increase Production Efficiency: 30%–50% Higher Output

Designed for continuous industrial operation, this system supports stable long-hour production in packaging film factories.

Improved screw and die coordination ensures stable melt flow during high-speed extrusion

Dual-lip air ring system helps stabilize bubble formation and reduce fluctuations

Reduced film breakage helps lower waste and improve production continuity

Suitable for mass production of T-shirt bags, courier bags, garbage bags, and agricultural film.

Industrial-Grade Technical Specifications

Technical Item	Specification	Engineering Value
Layer Structure	ABA 3-layer co-extrusion (Virgin / Recycled or filler / Virgin)	Flexible cost-performance balance
Compatible Materials	HDPE / LDPE / LLDPE / Recycled PE / CaCO₃	Wide formulation adaptability
Film Width & Thickness	500–2000 mm / 0.01–0.15 mm	Fully customizable for market needs
Output Capacity	80–250 kg/h (depending on configuration)	Suitable for medium to large-scale production
Screw & Barrel	Nitrided 38CrMoAlA steel, optional bimetallic coating	Improved wear resistance for recycled materials
Control System	PLC intelligent control (Siemens / Delta optional)	Stable operation with easy maintenance
Drive & Cooling	Heavy-duty gearbox + dual-lip air ring	Stable torque output and bubble control

Certified Manufacturing Standards

CE certification available for export compliance

ISO9001:2015 quality management system compliance

Factory testing video and pre-shipment inspection reports available upon request

Global Export Experience

Successfully supplied to 40+ countries worldwide
Full customization for different voltage standards (220V / 380V / 415V / 440V)
Engineering adjustments based on local raw materials and production requirements

Export Packaging System

Designed for safe long-distance sea transportation:
Anti-corrosion protective oil coating
Moisture-proof vacuum sealing
Reinforced wooden case with steel frame structure
Ensures equipment protection under multi-climate and long transit conditions.

After-Sales Support

12-month warranty for core components (screw, die head, gearbox)
Lifetime remote technical support with fast response assistance
Optional overseas engineer installation and operator training service

Commercial & Trade Terms

Production Lead Time	30–60 days depending on configuration and customization level
Payment Terms	T/T (30% deposit, 70% balance after factory testing) or Irrevocable L/C at sight
Incoterms	EXW / FOB / CIF / CFR available
