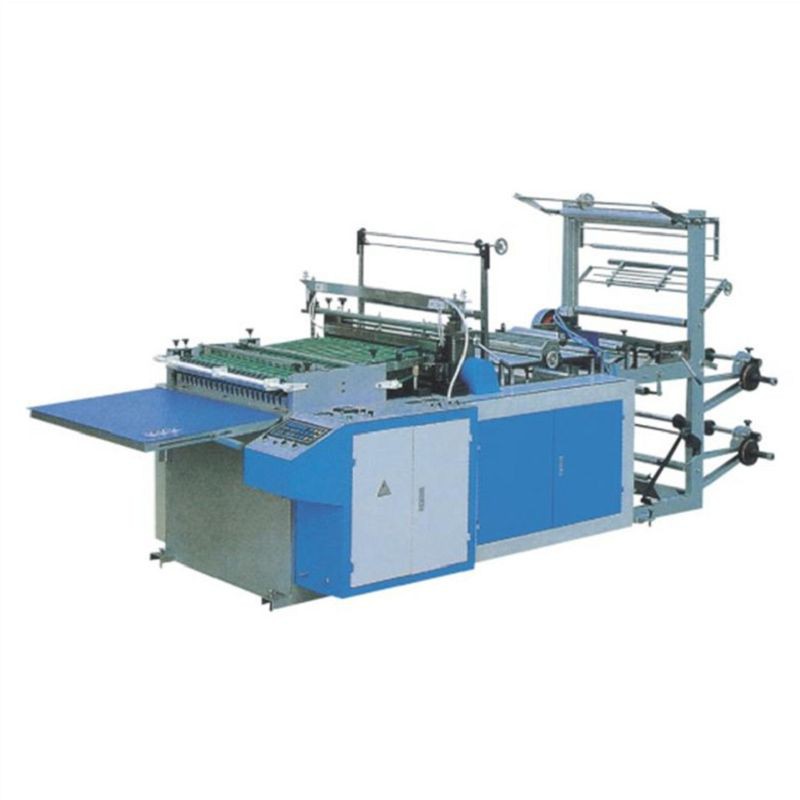

The Computer Hot Bag Making Machine uses computerized fixed-length control and photoelectric tracking to ensure precise bag production.
The machine body is built with a cast iron structure, providing strong stability and reducing vibration during high-speed operation.
It is equipped with multiple automatic functions:
- Automatic gluing system
- Automatic punching system
- Hot lace sealing system
- Constant temperature heat sealing system
- Computer-controlled length adjustment
Application Materials
The machine is suitable for a wide range of flexible packaging films:
BOPP film
OPP film (main application material)
Heat shrinkable film
PP, PE, CPP films (depending on configuration)
Main Applications
The Computer Hot Bag Making Machine is widely used for:
Sock packaging bags
Towel packaging bags
Bread packaging bags
Jewelry bags
Stationery bags
Shoe packaging bags
Retail and industrial packaging bags
Main Technical Parameters
|
Model |
600 |
800 |
1000 |
|
Sealing & Cutting Length |
999 mm |
999 mm |
999 mm |
|
Sealing & Cutting Width |
580 mm |
780 mm |
980 mm |
|
Bag-making Speed |
40–240 pcs/min |
40–240 pcs/min |
40–240 pcs/min |
|
Motor Power |
3 kW |
7 kW |
10 kW |
|
Machine Weight |
700 kg |
850 kg |
950 kg |
|
Dimensions (L×W×H) |
3600×1200×1700 mm |
3600×1400×1700 mm |
3600×1600×1700 mm |
Working Principle
The machine operates through a continuous automated process:
Film feeding from roll material
Computer-controlled length setting
Photoelectric tracking for positioning
Heat sealing of film edges
Hot cutting separation of bags
Automatic stacking and output
Performance Features
Microcomputer control system for stable operation
Variable frequency speed regulation
Optional servo motor control system
Photoelectric tracking with automatic correction
Automatic stop when marking is lost
Double-sided tape synchronization system
Automatic punching function
Constant temperature heat sealing for stable sealing quality
Smooth and clean cutting edges
Quality Control & Reliability
Each Computer Hot Bag Making Machine is tested before shipment under continuous running conditions to ensure stable performance.
Testing includes:
Certifications & Standards
CE certification (optional depending on configuration)
ISO-standard manufacturing process
Electrical safety compliance for export markets
Packaging & Shipment
Reinforced Wooden Crate Packing
Fumigated export-grade wooden case with strong internal frame, suitable for stacking and long-distance sea freight.
01
Anti-rust Protection
Key metal parts are coated with anti-rust oil and wrapped with moisture-proof film to prevent corrosion during shipping.
02
Shockproof Structure
High-density foam, cushioning blocks, and fixed brackets are used to secure all precision parts and reduce vibration damage.
03
Moisture Protection
Waterproof wrapping film and desiccant are added inside the package to protect against humidity and marine climate.
04
Sea Freight Ready
Suitable for 20GP/40HQ containers, fixed with steel straps and wooden base supports to prevent movement during transport.
05
FAQ
Q: What is the MOQ?
A: The MOQ is 1 set for the Computer Hot Bag Making Machine.
Q: What payment terms do you accept?
A: We accept T/T 30% deposit and 70% balance before shipment, and L/C at sight for large orders.
Q: What trade terms are available?
A: We support FOB, CIF, and EXW depending on customer requirements.
Q: What is the delivery time?
A: Delivery time is usually 25–45 working days depending on configuration.
Q: How do you ensure machine quality?
A: Each Computer Hot Bag Making Machine is fully tested under continuous operation before shipment.
Q: What warranty is provided?
A: We provide a 12-month warranty covering non-human damage parts.
Q: How is the machine packaged?
A: It is packed in reinforced export wooden cases with rust-proof and shock-proof protection.
Q: Do you provide installation support?
A: Yes, we provide remote guidance and optional overseas engineer installation service.
Q: What certifications are available?
A: CE certification is available and production follows ISO-standard quality control.
Q: Can the machine be customized?
A: Yes, customization is available for size, speed, and configuration.
Q: What materials can this machine process?
A: It is suitable for BOPP, OPP, PP, PE, CPP and heat shrinkable films depending on setup.
