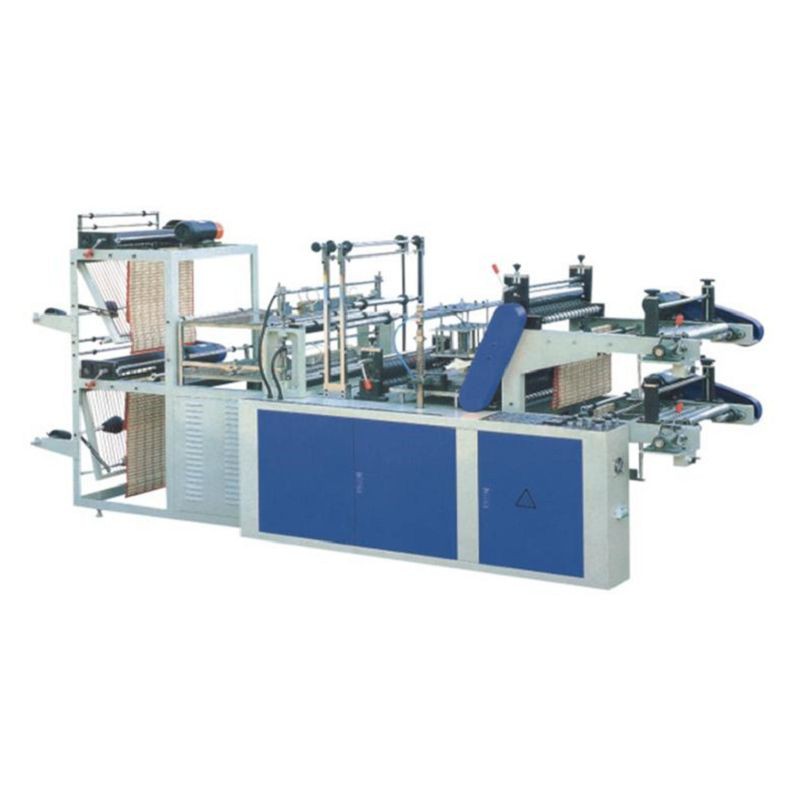

Double Channel Roll Vest Bag Making Machine

Double Channel Roll Vest Bag Making Machine

Designed exclusively for high-volume plastic packaging manufacturers, wholesale suppliers, and industrial factories targeting supermarket tenders.
Send Inquiry

Designed exclusively for high-volume plastic packaging manufacturers, wholesale suppliers, and industrial factories targeting supermarket tenders. The Double Channel Roll Vest Bag Making Machine is fully optimized for continuous heavy-duty production of T-shirt bags and vest bags on roll.



Why Tier-1 Procurement Managers Choose the GBDR Series



The machine adopts a twin-line synchronized design, achieving an output of up to 240 pcs/min (120 pcs/min × 2 lines). One operator can manage multiple machines, significantly reducing labor cost per unit and improving production efficiency for bulk orders.


Equipped with industrial-grade servo drive system and constant-tension control structure, the machine automatically adjusts film tension according to roll diameter. This ensures stable feeding, prevents film stretching, and maintains dimensional accuracy within ±0.5mm, resulting in consistent product quality.


High-sensitivity color mark tracking system ensures precise alignment of printed film. If tracking deviation or film break occurs, the system automatically stops within a short response time to prevent material waste and production loss.


The machine is designed to process HDPE, LDPE, recycled materials, and biodegradable films such as PLA and PBAT. Stable sealing performance is maintained even under variable material conditions, meeting modern environmental and retail packaging requirements.



Technical Specifications



Model

GBDR-500 / 600 / 700 / 800

Max Bag Width

400 / 500 / 600 / 700 mm

Max Bag Length

1200 mm

Film Thickness Range

0.008–0.10 mm

Production Speed

120 pcs/min × 2 lines

Main Motor Power

1.1 kW / 1.1 kW / 1.5 kW / 1.5 kW

Heating Power

1.2 kW / 1.6 kW / 2.0 kW / 2.2 kW

Machine Weight

800 kg / 850 kg / 900 kg / 1000 kg

Global Voltage Support

220V / 380V / 415V / 440V, 50/60Hz, 3-phase customizable according to customer requirements.



Fully Automatic Production Process



Film Feeding → Tension Control → Folding & Sealing → Handle Forming → Cutting → Rewinding
The integrated production line reduces manual intervention and ensures continuous stable operation.



Quality Assurance and Global Support System



Each machine undergoes a 72-hour continuous operation test before shipment to ensure mechanical and thermal stability. Full Factory Acceptance Test (FAT) videos are provided using actual production materials. CE certification is available for international markets. The machine is supported by 24/7 online technical assistance, overseas engineer installation service, and a global spare parts supply system for fast replacement and minimal downtime.



FAQ



Q: Can the machine process recycled or thin gauge HDPE materials?

A: Yes. The sealing system is designed to handle recycled and thin films with stable temperature control and uniform pressure distribution, ensuring reliable sealing performance.

Q: What is the production lead time?

A: Standard production time is 30–45 working days after deposit confirmation.

Q: How is the machine protected during sea freight shipping?

A: The machine is treated with anti-rust coating, vacuum sealed with moisture-proof materials, and packed in reinforced fumigated wooden crates for long-distance transportation.

Q: What warranty and spare parts support is provided?

A:A 12-month warranty is included. A one-year wear parts kit is supplied with the machine, including heating elements, thermocouples, and consumable components.
