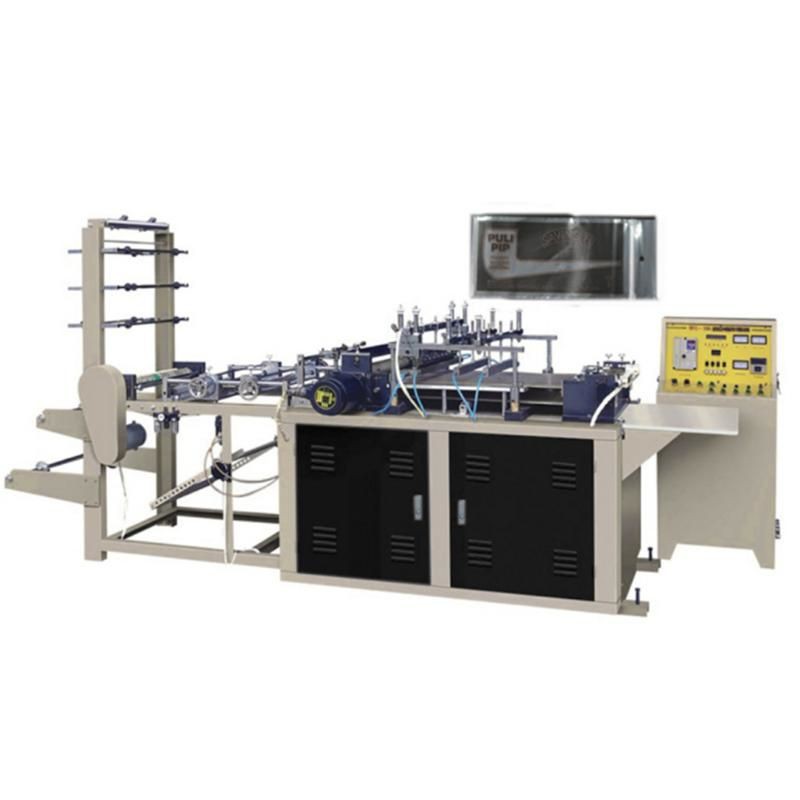

The Computer Non-woven Bag Making Machine series B600, B700, and B800 manufactured by Huawei Machinery is a high-efficiency industrial solution designed for automated production of non-woven bags, including shopping bags, vest bags, rope bags, and flat-mouth bags.
Main Technical Parameters
|
Model |
B600 |
B700 |
B800 |
|
Production Speed |
40–100 pcs/min |
40–100 pcs/min |
40–100 pcs/min |
|
Bag Width |
100–800 mm |
100–800 mm |
100–800 mm |
|
Bag Length |
200–480 mm |
200–580 mm |
200–680 mm |
|
Non-woven Fabric |
30–100 g |
30–100 g |
30–100 g |
|
Power Supply |
380V / 220V |
380V / 220V |
380V / 220V |
|
Total Power |
11 kW |
13 kW |
15 kW |
|
Overall Size (L×W×H) |
7600×1650×1800 mm |
7600×1650×1800 mm |
7600×1850×2000 mm |
Production Process
The machine follows a fully automated workflow:
Non-woven fabric roll feeding
Automatic unwinding and alignment correction
Computer-controlled positioning and tracking
Cutting, hot pressing, and sealing
Folding and shaping
Final cutting and finished product output
Engineering Features
Key engineering characteristics include:
Computerized positioning system for accurate bag forming
1
>>
Photoelectric tracking for material alignment
2
>>
Automatic edge correction system
3
>>
Stable sealing and cutting mechanism
4
>>
LCD touch screen control interface for real-time operation
5
Performance Advantages
The machine achieves a production speed of 40–100 pcs/min, enabling large-scale manufacturing with significantly improved output compared to manual or semi-automatic processes.
The machine integrates feeding, forming, cutting, and stacking processes into one automated line, reducing labor requirements and operational complexity.
The system can produce different types of non-woven bags, including shopping bags, vest bags, rope bags, and flat-mouth bags, depending on configuration.
Application Fields
The B600 / B700 / B800 Computer Non-woven Bag Making Machine is widely used in:
Eco-friendly shopping bag production
Advertising and promotional packaging
Retail and supermarket packaging supply chains
Gift packaging manufacturing
Agricultural and planting containers (breathable non-woven applications)
FAQ
Q: What is the MOQ for ordering this machine?
A: The MOQ is 1 set for factory direct orders.
Q: What payment terms are available?
A: T/T 30% deposit and 70% balance before shipment are standard, L/C is available for large orders.
Q: What is the delivery time?
A: Standard production and delivery time is 20–30 working days depending on configuration.
Q: What trade terms do you support?
A: We support EXW, FOB, CIF, and CFR based on customer requirements.
Q: What is the warranty period?
A: The machine comes with a 12-month warranty and lifetime technical support.
Q: How is the machine packaged?
A: Each unit is packed in export-grade wooden cases with internal steel fixation for safe transportation.
Q: What certifications are available?
A: CE certification can be provided, and the machine is manufactured under ISO quality management standards.
Q: Can the machine be customized?
A: Yes, bag size range, voltage system, and configuration can be customized according to production needs.
Q: Do you provide installation support?
A: Yes, we provide remote installation guidance and technical documentation, with optional overseas engineer service.
