Product Overview

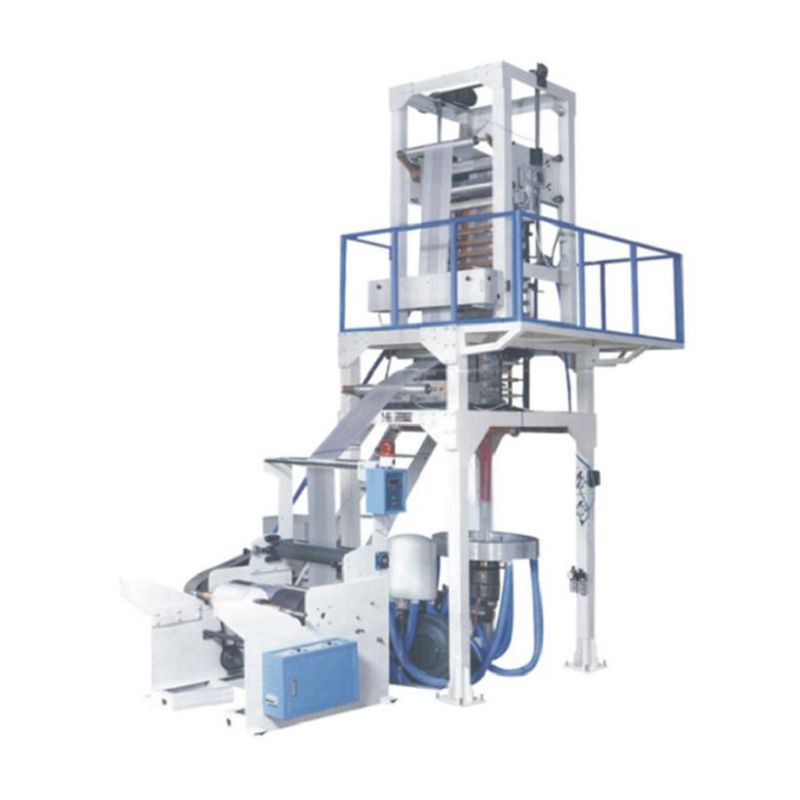

The PE High-speed Film Blowing Machine Unit is a production system designed for the high-speed, continuous extrusion and forming of PE plastic films; it is primarily used for manufacturing packaging films, shopping bag films, agricultural films, and industrial films.
Table parameters
|
Model |
SJ-45 |
SJ-55 |
SJ-65 |
|
Screw diameter |
Φ45 |
Φ55 |
Φ65 |
|
Screw ratio L/D |
28:1 |
28:1 |
28:1 |
|
Screw speed |
15-120 r/min |
15-120 r/min |
15-100 r/min |
|
Main motor power |
15 kW - 18.5 kW |
18.5 kW - 22 kW |
22 kW - 30 kW |
|
Extrusion output |
55 kg/h |
80 kg/h |
100 kg/h |
|
Range of die |
Φ60 – Φ100 |
Φ150 – Φ220 |
Φ150 – Φ220 |
|
Max folding width |
600 mm |
800 mm |
1000 mm |
|
Electric total capacity |
38 kW |
48 kW |
65 kW |
|
Overall dimension |
3000×2800×4200mm |
3500×3500×4800mm |
4000×4000×6000mm |
|
Machine weight |
3.5 T |
4.0 T |
4.5 T |
Production & Quality Control
Manufacturing Capabilities
The facility features a standardized mechanical manufacturing workshop, equipped with CNC machining centers, precision lathes, and automated assembly equipment.
Standardized Production Process
Raw Material Inspection → Precision Component Machining → Machine Assembly → Electrical Control System Installation → System Debugging → Finished Product Inspection.
Quality Control
Incoming Material Inspection: Quality verification of steel, motors, and electrical components.
In-Process Inspection: Dimensional and machining precision checks for critical components.
Machine Testing: Continuous operation and stability testing.
Finished Product Inspection: Verification of film thickness, uniformity, and winding quality.
Installation & After-Sales Service
Installation Support
We provide installation drawings, operation manuals, and video tutorials; on-site installation services are also available upon request.
Commissioning Services
Comprehensive machine commissioning is completed prior to shipment; we also offer remote technical guidance to help customers quickly commence production.
After-Sales Response
We provide 24/7 technical support to ensure a rapid response to any operational issues, thereby minimizing downtime.
Spare Parts Supply
We maintain a long-term supply of consumable parts-including screws, die heads, heating rings, and electrical components-to ensure the continuous and stable operation of the equipment.
Warranty Policy
The complete machine comes with a 12-month warranty, and extended warranty services are available for core components.
FAQ
Q: Which raw materials is this high-speed PE film blowing machine suitable for?
A: The equipment is suitable for PE raw materials such as LDPE and HDPE. Process parameters can be adjusted according to the specific raw materials used to meet a wide range of film production requirements.
Q: What is the maximum output capacity of the equipment?
A: The output capacity varies depending on the machine model, screw configuration, and film specifications. It is capable of meeting high-speed, continuous production demands and is well-suited for processing large-volume orders.
Q: Is the film thickness stable?
A: The equipment features a stable extrusion system and a precise temperature control structure, which effectively regulates film thickness and enhances the uniformity and stability of the finished product.
Q: Does the equipment support customization?
A: Yes, customization is supported. We can adjust parameters such as screw diameter, die head specifications, film width, motor configuration, and voltage standards to meet specific client requirements.
Q: Is the equipment installation process complex?
A: The equipment undergoes complete commissioning prior to leaving the factory, allowing customers to quickly commence production by simply following the provided installation guidelines. We also offer both remote and on-site installation support services.
Q: Do you provide after-sales technical support?
A: We provide 24/7 technical support, including remote troubleshooting, operational guidance, parameter adjustment, and after-sales maintenance services.
Q: Are spare parts and consumables available for the long term?
A: We provide a long-term supply of spare parts and consumables-such as screws, barrels, die heads, heating rings, and electrical components-to ensure the stable and reliable long-term operation of the equipment.
Q: Is the equipment suitable for continuous production?
A: The equipment is built with high-quality core components and a stable transmission system, making it suitable for continuous 24-hour operation with a low failure rate.
