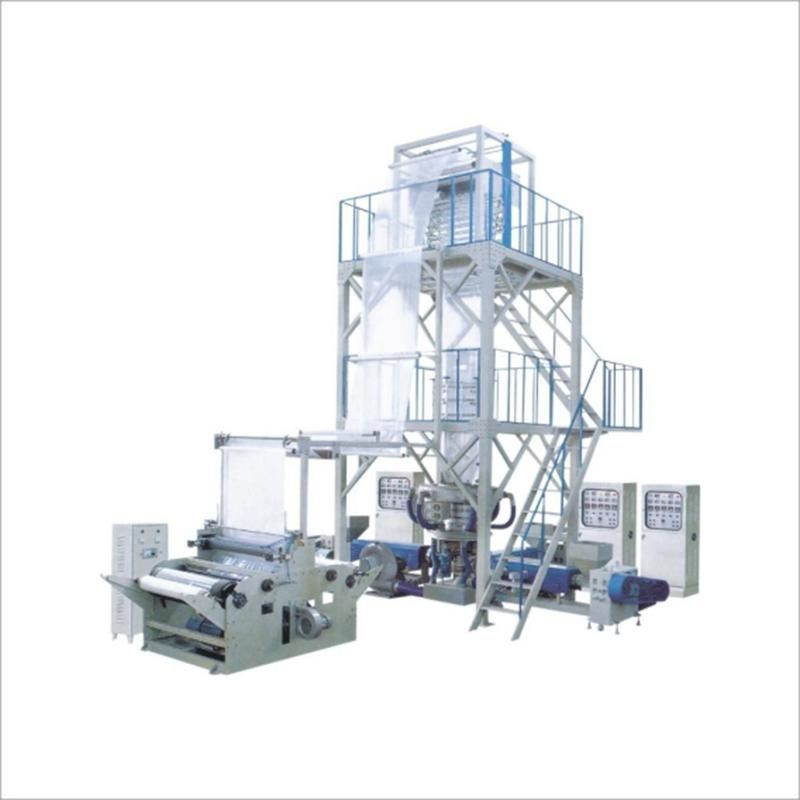

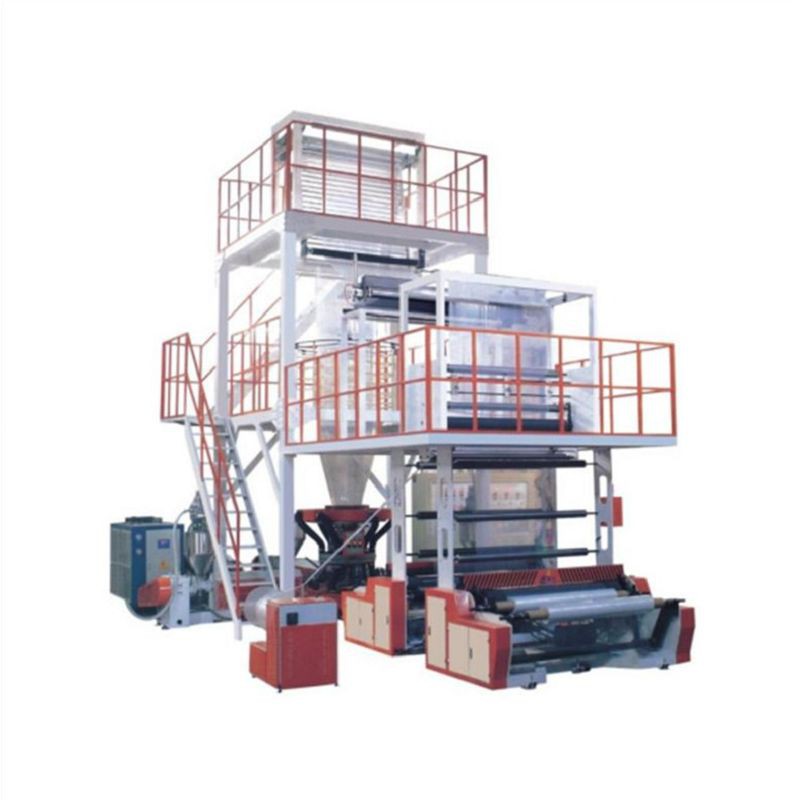

The Three-layer Co-extruded Rotary Film Blowing Machine is designed for industrial-scale multilayer film production, enabling simultaneous extrusion of A/B/A or A/B/C structures in one continuous process.
This system integrates extrusion, rotary die head technology, film blowing, and PLC automation control into a stable production line for long-term continuous operation.
Why Choose This Machine?
Improved Film Uniformity with Controlled Thickness Accuracy
The 360° rotary die head ensures stable bubble formation and controls film thickness deviation within ±5%, improving final film consistency for high-end packaging applications.
Energy Saving Production
The machine adopts high-efficiency heating systems and frequency inverter control, reducing energy consumption by approximately 15%–20% compared with conventional film blowing machines, helping reduce long-term operating cost.
Flexible Three-Layer Co-Extrusion Structure
Supports multiple film structures including:
- A/B/A structure for cost-sensitive packaging
- A/B/C structure for functional barrier film
- Virgin + recycled material blending
- Each extrusion layer is independently controlled for precise material ratio adjustment.
Stable Industrial Output Capacity
Depending on configuration:
- Output capacity: 80–120 kg/h
- Screw speed: 15–150 r/min
Wide Material Compatibility
Compatible materials include:
- HDPE
- LDPE
- LLDPE
- PA (optional multilayer structure)
- Recycled polyethylene materials
Technical Configuration
|
Item |
Specification |
|
Film Thickness |
0.01 – 0.10 mm |
|
Max Film Width |
1000 – 1500 mm |
|
Screw L/D Ratio |
28:1 |
|
Screw Speed |
15–150 r/min |
|
Main Motor Power |
15kW×2 + 18.5kW×1 / up to 30kW×1 |
|
Die Head Range |
Φ150 – Φ300 mm |
|
Total Power |
76 – 102 kW |
|
Machine Weight |
6.5 – 8.5 T |
|
Structure |
Three-layer co-extrusion rotary system |
Premium Electrical Components (Optional / Standard Upgrade)
To ensure long-term stability and global maintenance compatibility, key components can be configured with internationally recognized brands:
PLC Control System
Siemens / Delta
01
Inverter
Yaskawa / Delta
02
Low Voltage Electricals
Schneider / Omron
03
Temperature Control System
Omron precision controller
04
Main Motor
Siemens Beide or equivalent industrial-grade motor
05
Applications
The Three-layer Co-extruded Rotary Film Blowing Machine is suitable for:
Food packaging film production
Fresh fruit and vegetable packaging
Meat and frozen product packaging
Agricultural greenhouse film
Industrial protective film
Courier and logistics packaging bags
Shrink film applications
Engineering Features
- 360° continuously rotating spiral die head for improved layer uniformity
- Quick screen-changing system for reduced downtime
- Integrated cooling air ring system for stable bubble control
- Edge sealing and flattening system for improved winding quality
- Screw made of 38CrMoAl alloy steel, ensuring high hardness and corrosion resistance under long-term operation
Quality Assurance & Production Testing
Each machine is tested before shipment, including:
Full-load continuous running test
Electrical safety inspection
Temperature stability verification
Film thickness uniformity testing
Mechanical vibration stability check
Only machines passing all tests are released for delivery.
FAQ
Q: What payment terms do you accept?
A: We accept T/T (30% deposit, 70% before shipment) and L/C at sight for large orders.
Q: What trade terms are available?
A: We support EXW, FOB, CIF, and CFR depending on customer requirements.
Q: What is the MOQ?
A: The minimum order quantity is 1 set of the Three-layer Co-extruded Rotary Film Blowing Machine.
Q: What is the delivery time?
A: Standard delivery time is 30–60 days depending on configuration.
Q: How is the machine packaged?
A: The machine is packed with protective film, wooden case, and steel frame for sea shipment safety.
Q: What quality guarantee do you provide?
A: We provide a 12-month warranty and lifetime technical support for the Three-layer Co-extruded Rotary Film Blowing Machine.
Q: What certifications do you have?
A: Machines are manufactured under ISO standards and can be supplied with CE certification if required.
Q: Do you provide installation support?
A: Yes, we provide remote guidance and optional overseas engineer installation service.
