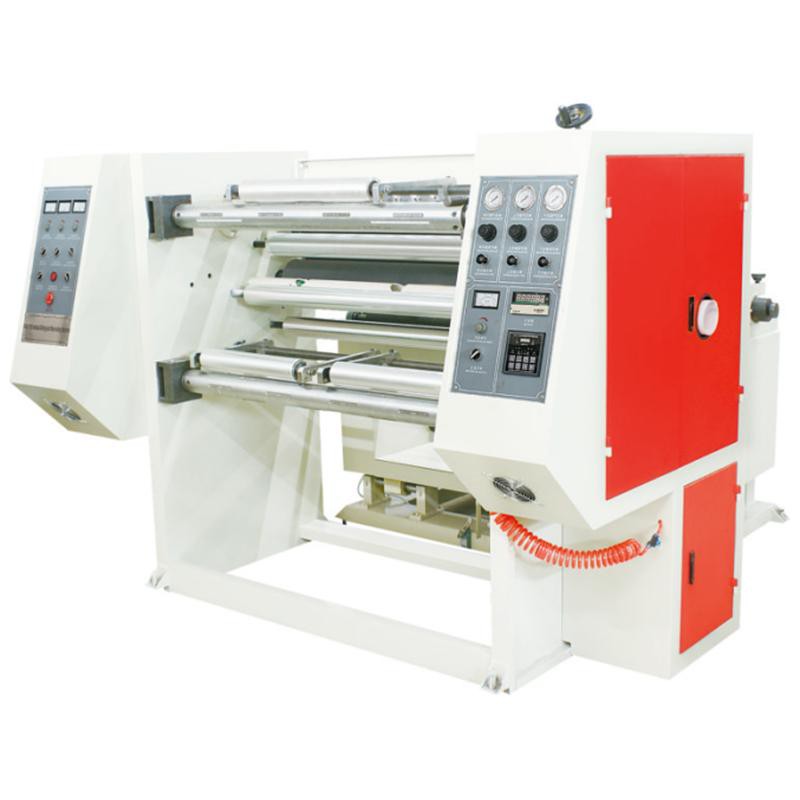

Microcomputer Control Automatic Slitting Machine
Table parameters
|
Main Technical Parameters |
|||
|
Type |
WFQ-1000 |
WFQ-1000 |
|
|
Max diameter |
600mm |
600mm |
|
|
Max width |
1000mm |
1300mm |
|
|
Paper inner diameter |
76mm |
76mm |
|
|
Cutting dimension |
20-1300mm |
20-1300mm |
|
|
Cutting tension |
160m/min ² |
160m/min |
|
|
Accuracy of adjustment |
±0.5mm |
±0.5mm |
|
|
power |
3.8kw |
4.8kw |
|
|
Weight of machine |
1500kg |
1650kg |
|
|
Overall dimensions(L×W×H) |
2200×1300×1500 |
2200×1300×1500 |
|
Product description
The QFJ series microcomputer control automatic slitting machine is a high-performance slitting equipment that belongs to the same category of slitting equipment as aluminum foil slitting machine that specialize in slitting aluminum foil materials. It plays an important role in the field of coil processing.
Our machine adopts a microcomputer controlled automatic cutting method and is suitable for BOPP, PET, CPP, CPE, PVC, PE, self-adhesive materials, aluminum foil, insulation paper, photosensitive materials, and various web paper substrates. It can unfold and cut paper and other rolls according to different needs during the production process. It has a reasonable structure, complete functions, and stable performance, and is in the domestic leading position. It is the main supporting equipment in the production of packaging products. The aluminum foil slitting machine is a specialized slitting equipment for aluminum foil, a specific material. The QFJ series automatic slitting machine not only covers the functions of aluminum foil slitting machine, but also has a wider range of applications.
The performance and characteristics of the QFJ series microcomputer control automatic slitting machine produced by Huawei Machinery:
Adopting host frequency control to ensure the stability and accuracy of equipment operation.
Equipped with an independent control screen, making operation more flexible and convenient. Operators can easily set parameters and monitor equipment operation status through the control screen.
Unwinding automatic correction, photoelectric eye tracking can follow the edge or line.
Air expansion shaft, magnetic powder brake, automatic tension control.
Winding using inflatable shaft (can be equipped with camshaft), magnetic powder clutch winding.
Equipped with a waste blowing device, it can promptly remove the waste generated during the cutting process, maintain a clean working environment, and improve production efficiency.
Equipped with an automatic material length measuring instrument, it can accurately measure the length of cut materials to meet different production measurement needs.
The winding roller makes the coil more flat.
Round knife slitter device can be selected.
