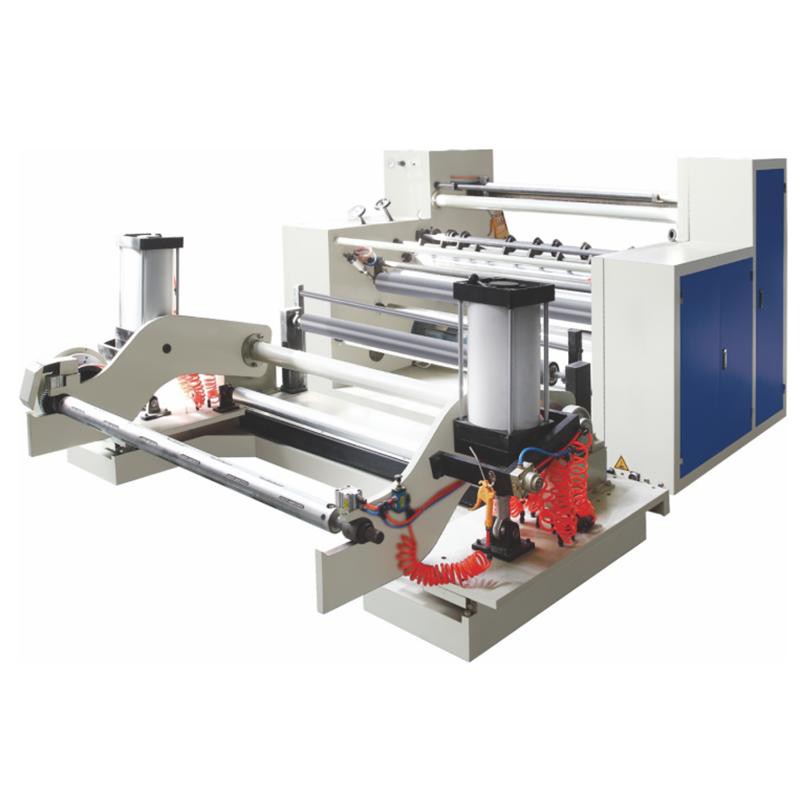

Horizontal Slitting Machine
Table parameters
|
Main Technical Parameters |
||||
|
Type |
QFJ-A700 |
QFJ-A700 |
QFJ-A700 |
|
|
Max width of mother |
600mm |
1000mm |
1200mm |
|
|
Max diameter of mother roll |
φ600mm |
φ600mm |
φ600mm |
|
|
Width of final roll |
30-600mm |
30-1000mm |
30-1200mm |
|
|
Slitting and rewinding speed |
5-180mm |
5-180mm |
5-180mm |
|
|
Motor power |
2.7kw |
3kw |
3.5kw |
|
|
Weight of machine |
1800kg |
2000kg |
2200kg |
|
|
Overall dimensions(L×W×H) |
2100×1800×1200 |
2100×2000×1200 |
2200×2100×1200 |
|
Product description
The QFJ-A series horizontal slitting machine is an excellent slitting equipment, belonging to the slitting equipment family along with composite packaging material slitting machine and paper roll slitting machine that specialize in specific fields. It has important applications in the field of coil processing.
Our machine adopts a microcomputer controlled automatic cutting method and is suitable for BOPP, PET, CPP, CPE, PVC, PE, self-adhesive materials, aluminum foil, insulation paper, photosensitive materials, and various web materials. It can unfold and cut paper and other roll materials according to different production needs. It has a reasonable structure, complete functions, and stable performance, and is in the domestic leading position. It is the main supporting equipment in the production of packaging products. The composite packaging material slitting machine is mainly used for slitting composite packaging materials, while the paper roll slitting machine focuses on slitting the roll paper. The QFJ-A series horizontal slitting machine, on the basis of covering these two functions, has a wider range of applications.
The performance and characteristics of the QFJ-A series horizontal slitting machine produced by Huawei Machinery:
Adopting host frequency control to ensure the stability and accuracy of equipment operation.
Equipped with an independent control screen, making operation more flexible and convenient. Operators can easily set parameters and monitor equipment operation status through the control screen.
Unwinding automatic correction, photoelectric eye tracking can follow the edge or line.
Air expansion shaft, magnetic powder brake, automatic tension control.
Winding using inflatable shaft (can be equipped with camshaft), magnetic powder clutch winding.
Equipped with a waste blowing device, it can promptly remove the waste generated during the cutting process, maintain a clean working environment, and improve production efficiency.
Equipped with an automatic material length measuring instrument, it can accurately measure the length of cut materials to meet different production measurement needs.
The winding roller makes the coil more flat.
Round knife slitter device can be selected.
