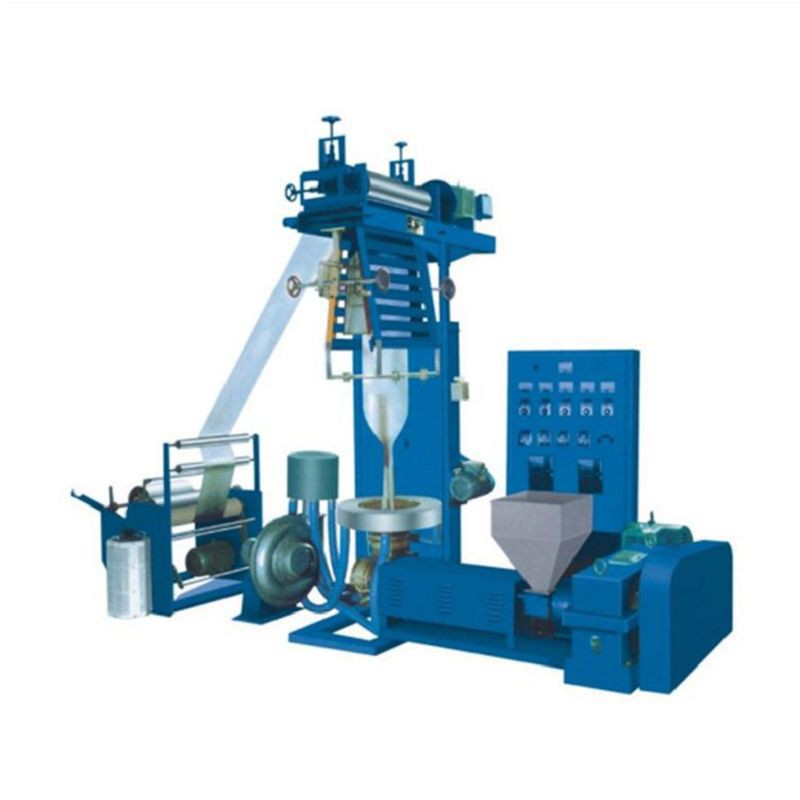

Simple High and Low Pressure Film Blowing Machine

Simple High and Low Pressure Film Blowing Machine

The DC motor drive system reduces energy consumption by approximately 15–20% compared with traditional motor systems, helping factories significantly lower daily electricity costs.
Send Inquiry

Key Production Advantages



Energy Saving Design
The DC motor drive system reduces energy consumption by approximately 15–20% compared with traditional motor systems, helping factories significantly lower daily electricity costs.


Flexible Material Compatibility
The Simple High and Low Pressure Film Blowing Machine supports stable processing of:

  • LDPE (Low-Density Polyethylene)
  • HDPE (High-Density Polyethylene)
  • LLDPE (Linear Low-Density Polyethylene)



Application Scope



This machine is widely used in the plastic packaging industry:

Shopping bag and T-shirt bag production

Food packaging film manufacturing

Fruit and agricultural packaging film

Industrial wrapping film

Textile and garment protective film

Garbage bag production



Technical Specifications (SJ45 / SJ50)



Item

SJ45-650

SJ50-850

Screw Diameter

Φ45 mm

Φ50 mm

L/D Ratio

28:1

28:1

Screw Speed

15–100 r/min

15–100 r/min

Main Motor Power

11 kW

15 kW

Output Capacity

30 kg/h

40 kg/h

Die Diameter Range

Φ40–Φ80 mm

Φ80–Φ150 mm

Film Thickness

0.008–0.10 mm

0.008–0.10 mm

Max Film Width

600 mm

800 mm

Total Power

23 kW

30 kW

Machine Size

4000×2000×3000 mm

4200×2500×3800 mm

Machine Weight

2.3 T

3.0 T



Engineering Features



High-Precision Extrusion System
The barrel is made of high-quality alloy steel with nitriding treatment and precision machining, ensuring wear resistance and long service life.
It effectively reduces common industry problems such as:

  • Uneven film thickness
  • Unstable extrusion pressure
  • Material degradation during long production runs


Stable Temperature Control System
Equipped with a multi-zone independent PID temperature control system, each heating section of the barrel is precisely controlled. High-sensitivity thermocouples provide real-time feedback to ensure accurate and stable temperature regulation.


DC Motor Drive System
The machine adopts a high-torque DC motor drive system combined with voltage stabilization control and precision transmission, ensuring stable output and wide speed adjustment range.



Quality Control & Inspection



To ensure reliability before shipment:

Before Delivery

Full machine no-load running test
Heating system stability inspection
Electrical safety testing
PE film extrusion performance test
Operation video recording for confirmation

Optional Verification

Customer raw material testing before final payment
Live video factory inspection
Third-party inspection support (SGS / BV / appointed agents)





FAQ



Q: What is the delivery time?

A: Production and delivery usually take 25–40 working days.

Q: What payment terms are available?

A: T/T 30% deposit and 70% balance before shipment. L/C is available for large orders.

Q: What trade terms do you support?

A: EXW, FOB, CIF, and CFR are available.

Q: How is the machine packaged?

A: Waterproof film, reinforced wooden case, and steel frame fixation for safe sea transport.

Q: What warranty is provided?

A: 12 months warranty with lifetime technical support.

Q: Can the machine be customized?

A: Yes, specifications such as screw size, output capacity, and film width can be customized.
