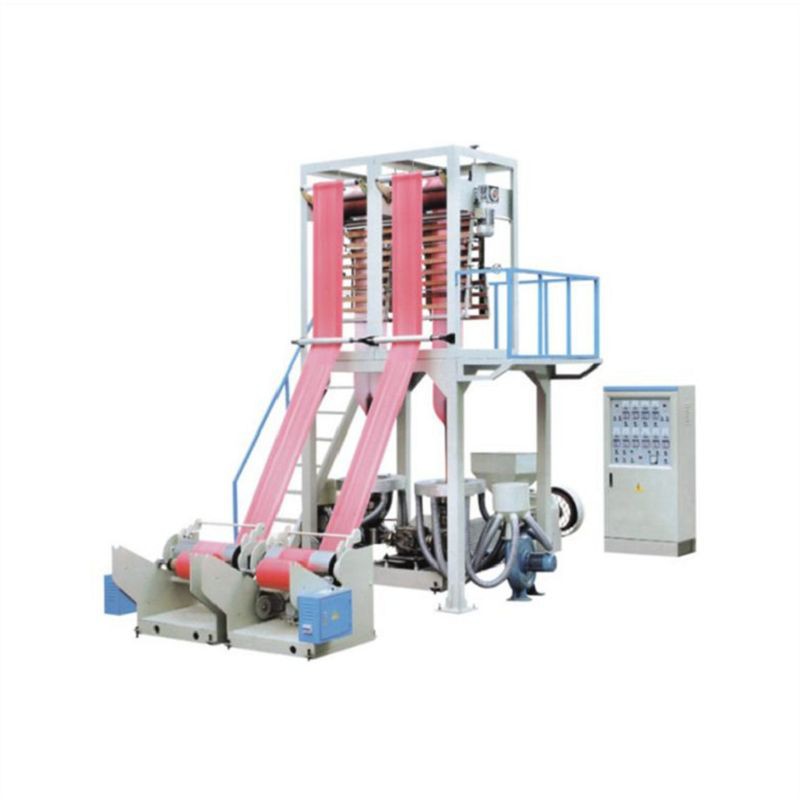

Dual Head Film Blowing Machine

Dual Head Film Blowing Machine

The Dual-Head Film Blowing Machine is an extrusion molding device designed to simultaneously produce two rolls of plastic film, primarily utilized for the continuous production of PE film.
Send Inquiry

Product Overview



The Dual-Head Film Blowing Machine is an extrusion molding device designed to simultaneously produce two rolls of plastic film, primarily utilized for the continuous production of PE film. It is suitable for applications in various fields, including shopping bags, packaging films, food packaging films, and industrial packaging films.



Table parameters



Main Technical Parameters

Model

SJ55-FM700

SJ55-FM800



Screw diameter

Φ60

Φ65



Screw ratio L/D

28:1

28:1



Screw speed

15-100r/min

15-100r/min



Main motor power

18.5kw-22kw

22kw-30kw



Extrusion output(single)

50-60kg/h

60-80kg/h



Range of die

Φ50×2 Φ80×2

Φ100×2 Φ150×2



Single-sided thickness of film

0.008-0.10mm

0.01-0.10mm



Max folding width of film

600mm

800mm



Electric total capacity

44kw

58kw



Overall dimension

4000×3500×4200

4500×4500×4500



Weight of machine

3.8T

4.5T





Core Advantages



Synchronous extrusion via dual die heads enables the simultaneous production of two film rolls, making it ideal for high-volume manufacturing.



Featuring a 28:1 L/D ratio screw combined with a stable temperature control system, the machine ensures uniform melt conveyance and maintains a consistent film thickness ranging from 0.008 to 0.10 mm.



It supports die head configurations ranging from Φ50×2 to Φ150×2, with a maximum film width of 600–800 mm, thereby meeting a wide variety of packaging requirements.



Production & Quality Control



Manufacturing Capabilities
We operate our own in-house machining workshop, equipped with CNC machining centers and precision machine tools, allowing for the independent manufacturing of screws, barrels, and die heads.



Production Process
Standardized Workflow: Material Cutting → Precision Machining → Component Assembly → Electrical Control Installation → Complete Machine Debugging. This process ensures consistent production quality.



Quality Inspection

  • Incoming Material Inspection: Batch-by-batch inspection of steel, motors, and electrical control components.
  • Manufacturing Process Inspection: Dimensional and precision control of critical components.
  • Complete Machine Testing: Continuous operation tests under both no-load and load conditions.
  • Finished Product Inspection: Comprehensive testing of film thickness uniformity, operational stability, and winding performance.



Installation & After-Sales Service



Installation Support
We provide installation drawings and video tutorials, offer remote commissioning assistance, and-when necessary-provide on-site installation services.



Commissioning Services
Basic commissioning is completed prior to shipment, enabling rapid startup and production immediately upon arrival; our technical team provides remote assistance to optimize operating parameters.



After-Sales Service
We offer 24/7 technical support, including remote diagnostics and troubleshooting guidance, to ensure rapid resolution of any issues.



Spare Parts Supply
We maintain a long-term supply of consumable parts-such as screws, die heads, and electric heating rings-to ensure uninterrupted production operations.



Warranty Policy
The complete machine comes with a 12-month warranty, with extended warranty coverage provided for core components to minimize operational risks.



FAQ



Q: What is a dual head film blowing machine used for?

A: It is used to produce plastic PE film for shopping bags, packaging film, and industrial wrapping materials with high efficiency.

Q: What materials can it process?

A: It is suitable for LDPE, HDPE, and other PE-based raw materials.

Q: What is the advantage of double head design?

A: It produces two rolls of film simultaneously, increasing output and reducing production cost per unit.

Q: Can the machine be customized?

A: Yes, die head size, film width, and motor configuration can be customized according to production requirements.

Q: Do you provide installation support?

A: Yes, we provide installation guidance, remote technical support, and optional on-site service
