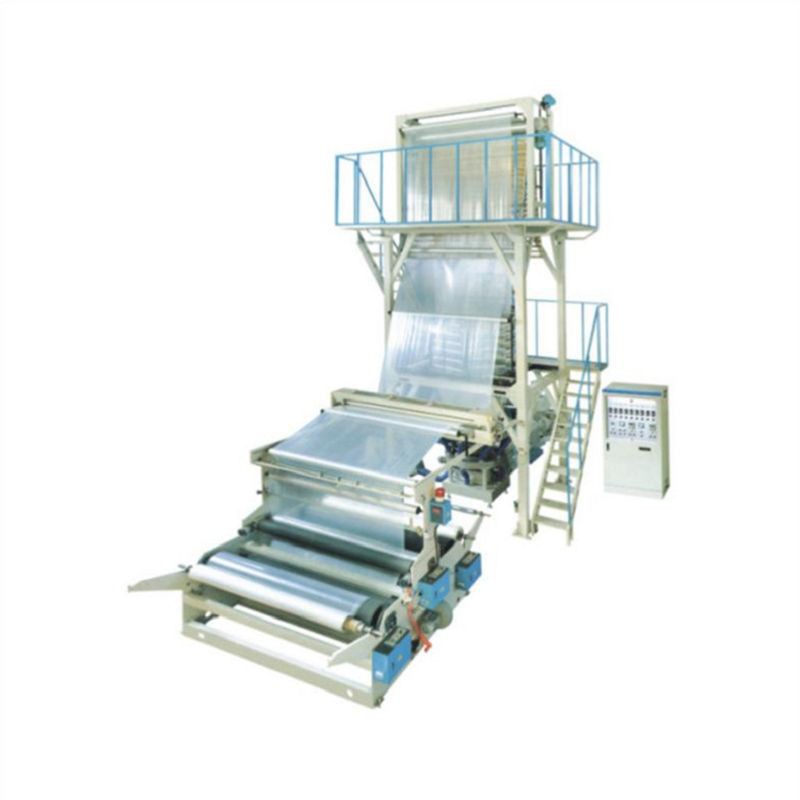

Polyethylene Film Blowing Machine Units are industrial extrusion systems designed for producing LDPE, HDPE, and LLDPE films through a stable melt-extrusion and air-blowing process.
Send Inquiry

Polyethylene Film Blowing Machine Units are industrial extrusion systems designed for producing LDPE, HDPE, and LLDPE films through a stable melt-extrusion and air-blowing process.


These machines are widely used in packaging film, agricultural film, greenhouse film, construction protective film, and industrial wrapping film production, supporting continuous 24-hour manufacturing for wholesale plastic film factories.



Production Efficiency & ROI Advantage



Polyethylene Film Blowing Machine Units are engineered for high-output, low-cost industrial operation, helping manufacturers improve profitability per ton of film.
SJ-75: Up to 2.8–3.0 tons/day
SJ-90: Up to 3.4–3.6 tons/day
SJ-120: Up to 4.5–4.8 tons/day


Cost Optimization Benefits:

  • Up to 30% energy saving through frequency-controlled motor system
  • Reduced raw material waste by 3%–8% due to stable extrusion control
  • Continuous 24-hour operation for high-volume production



Main Technical Parameters



Model

SJ-75

SJ-90

SJ-120

Screw diameter

Φ75

Φ90

Φ120

Screw ratio (L/D)

28:1

28:1

28:1

Screw speed

15–100 r/min

15–100 r/min

15–100 r/min

Main motor power

30–37 kW

37–45 kW

45–55 kW

Extrusion output

120 kg/h

145 kg/h

200 kg/h

Die diameter range

Φ150–Φ350

Φ500

Φ550

Film thickness range

0.01–0.10 mm

0.01–0.10 mm

0.01–0.10 mm

Max folding width

1500 mm

2000 mm

2300 mm

Total power

58 kW

80 kW

105 kW

Machine size

5200×3500×6000 mm

6800×4000×8500 mm

7000×4800×9000 mm

Weight

4.0 T

8.5 T

8.5 T



Working Principle



Polyethylene Film Blowing Machine Units heat polyethylene granules until fully molten, then extrude the melt through a die head. Compressed air inflates the molten film into a stable bubble, which is cooled, stabilized, and wound into rolls.



Core System Features



High-Efficiency Extrusion System
Fast-melting screw ensures stable melt flow and continuous output for 24-hour production, reducing energy consumption.


Precision Temperature Control
Multi-zone heating keeps melt temperature stable, improving film thickness uniformity and reducing defects.


Frequency-Controlled Drive System
VFD motor control provides stable speed adjustment and reduces power consumption by up to 30%.


Rapid Cooling System
High-efficiency double-lip air ring provides uniform circular airflow, quickly reducing melt temperature, minimizing thickness variation, and improving bubble stability and film transparency.


Industrial-Grade Mechanical Structure

  • Screw material: 38CrMoAl nitrided alloy steel (nitrided layer hardness and wear resistance designed for long-term extrusion operation)
  • Frame structure: Thickened welded steel frame to reduce vibration and maintain alignment during high-speed running
  • Wear parts: High-hardness alloy-treated components to improve durability under continuous 24/7 operation


Flexible Adjustment
Supports adjustment of:

  • Film width (die head)
  • Film thickness (extrusion & air control)
  • Film strength (temperature & cooling balance)

Suitable for multiple film product categories in different markets.



Applications



Polyethylene Film Blowing Machine Units are widely used in:

Industrial packaging film production

Agricultural greenhouse film

Dust-proof protective film

Shopping bag and retail packaging film

Construction protective film

Food packaging secondary film



Manufacturing Quality & Testing

Each machine is produced under strict industrial quality control:

  • Raw material inspection before production
  • Precision machining quality control
  • Full assembly calibration
  • 24-hour continuous load testing
  • Final export inspection report

Certifications & Compliance

  • CE certification (optional configuration)
  • ISO 9001:2015 quality management system
  • International-standard electrical components
  • Full factory inspection report provided before shipment

Customization & OEM Capability

Polyethylene Film Blowing Machine Units support full customization for global markets:

  • Voltage: 220V / 380V / 415V / 440V (50/60Hz)
  • Film width and die head customization
  • Single-layer or multi-layer extrusion systems
  • OEM branding and private label manufacturing available



Packaging & Shipping



Anti-corrosion protective film wrapping

Reinforced wooden or steel frame export packaging

Modular disassembly for container loading

Sea freight (FCL / LCL) supported



After-Sales Service & Risk Control



To ensure stable production and minimize downtime risk:

12-month full machine warranty

24-month warranty for core components (screw, motor, barrel)

Spare parts kit included with shipment

24/7 remote technical support (video + online diagnosis)

Optional overseas installation service available



Trade Terms



MOQ

1 set

Delivery time

30–60 days depending on configuration

Trade terms

EXW / FOB / CIF / CFR

Payment

T/T, L/C at sight, partial deposit supported



FAQ



Q: What is the production capacity per day?

A: Depending on model, output ranges from 2.8 to 4.8 tons per 24-hour operation.

Q: Can the machine process recycled polyethylene materials?

A: Yes, with proper filtration and screw configuration adjustments.

Q: What is the warranty period?

A: 12 months for complete machine and 24 months for core components.

Q: Do you provide installation support?

A: Yes, we provide remote guidance and optional on-site installation service.

Q: What trade terms do you support?

A: EXW, FOB, CIF, and CFR are available.

Q: Can the machine be customized?

A: Yes, full customization including voltage, width, and extrusion system is available.
