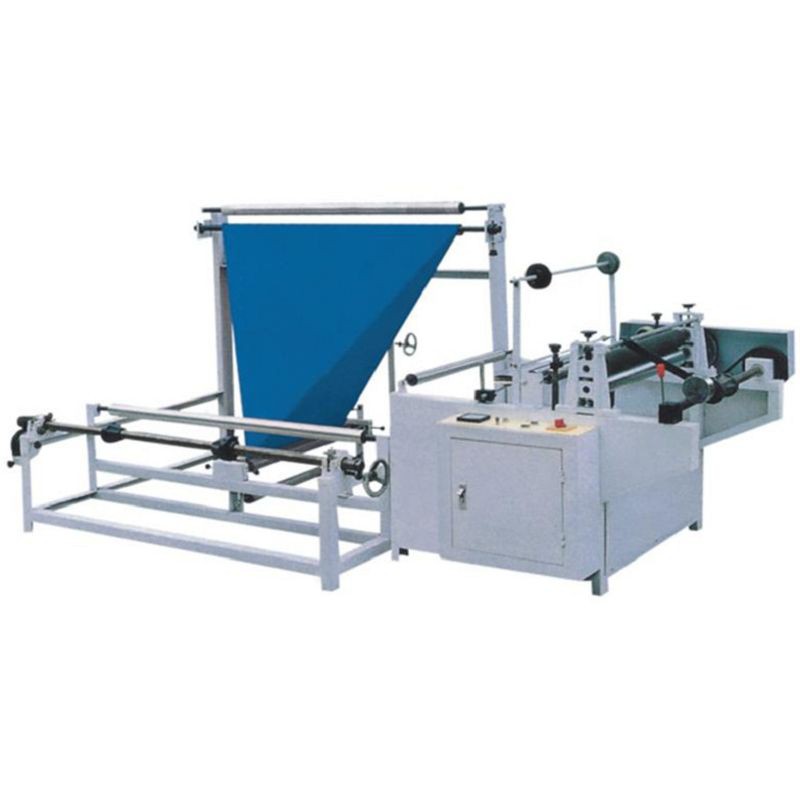

Folding and Winding Machine

Folding and Winding Machine

The RQL-ZB Series is an industrial-grade, fully automated folding and rewinding system designed for high-capacity plastic bag production lines.
Send Inquiry

The RQL-ZB Series is an industrial-grade, fully automated folding and rewinding system designed for high-capacity plastic bag production lines. It enables 24/7 continuous operation for HDPE and LDPE film processing, delivering stable output quality for supermarket bags, retail packaging, and large-scale converter factories.
This system is designed not just as a machine, but as a production efficiency upgrade solution for plastic bag manufacturers transitioning toward automated, low-labor manufacturing.



Core Business Value

Measurable Cost Reduction



Precision servo + PLC control system ensures dimensional accuracy within ±0.5 mm
Photoelectric tracking reduces misalignment waste by up to 15%
Lower scrap rate directly improves material cost efficiency per ton of output
Labor Optimization



Intelligent auto-stop system for film breakage and material jams
One operator can manage multiple production lines
Reduced dependency on skilled manual alignment workers
In real factory conditions, this can reduce labor per line by 30–60% depending on setup
Direct Downstream Integration Advantage
Stable tension-controlled winding ensures uniform roll density
Finished rolls can be directly fed into high-speed bag making machines
Eliminates secondary correction or rewinding steps
This reduces production bottlenecks between extrusion → bag making



Technical Parameters



Model

Max Width

Speed

Power

Weight

Dimensions

RQL-PZB1200

1200 mm

60 m/min

0.8 kW

800 kg

2400×1500×1500 mm

RQL-PZB1400

1400 mm

60 m/min

1.1 kW

900 kg

2600×1500×1500 mm

RQL-PZB1600/1200

1600 mm

60 m/min

1.5 kW

1000 kg

2800×1500×1500 mm

OEM/ODM available up to 2000 mm width, with full customization for factory layout and global voltage standards (220V / 380V / 415V, 50/60Hz).



Industrial Engineering Advantages



Industrial servo-driven architecture for stable long-cycle production

PLC-based intelligent control system for process reliability

Closed-loop tension control for consistent roll density

Photoelectric alignment system for printed film precision

Designed for 24/7 continuous industrial operation environments



Manufacturing Quality & Risk Control

ISO9001:2015 certified production system

CE compliant machinery design

Optional third-party inspection (SGS / TÜV / Intertek)



Before Shipment



72-hour continuous full-load operation test using real production materials
Video recording + QC report provided before shipment release



Supply Chain Security






12-Month warranty for non-wear components







5-Year guaranteed spare parts availability







Global courier replacement support for critical parts





Commercial & Trade Conditions



MOQ

1 set (factory direct supply, no distributor limitation)

Lead Time

20–35 working days (standard configuration approx. 25 days)

Payment Terms

T/T 30% deposit + 70% balance before shipment, or L/C at sight

Trade Terms

EXW / FOB / CIF / CFR / DDP available

Packaging

Industrial export-grade wooden case with anti-rust film protection



Global Technical Support

24/7 remote video support for installation, training, and troubleshooting

On-site engineer service available for full production line commissioning

Technical support covers layout planning and downstream integration advice



FAQ



Q: What happens if a key component fails during peak production?

A: Remote diagnosis is provided within 2 hours. If replacement is needed under warranty, critical parts are shipped via DHL/FedEx/UPS within 24 hours from global stock to minimize downtime.

Q: Can the machine be adapted to limited factory space?

A: Yes. The RQL-ZB series supports customized layout design, including drive-side position, control panel orientation, and infeed/outfeed direction to fit existing production lines.
