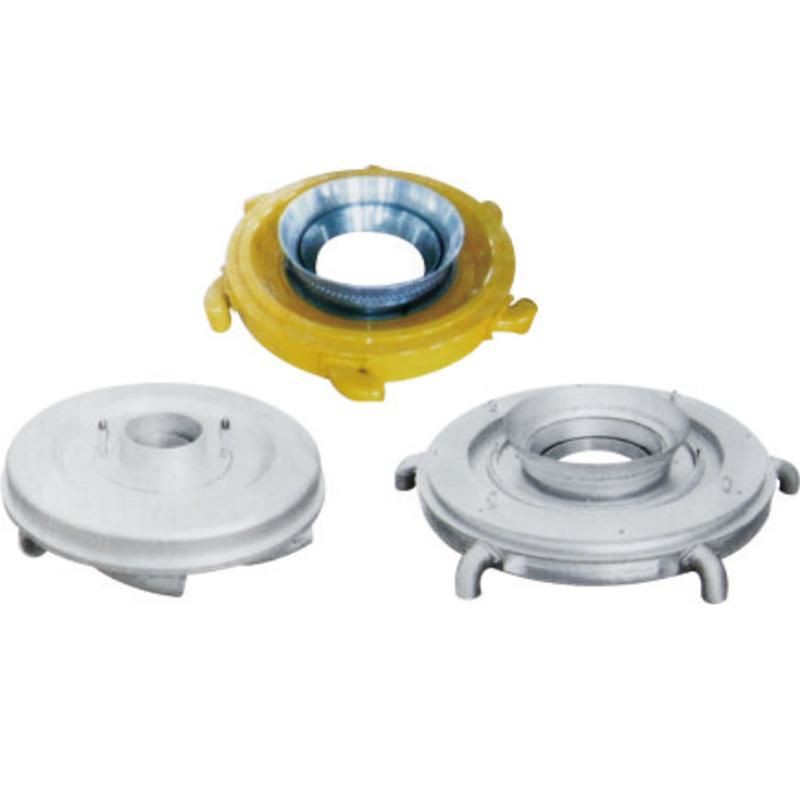

Double Air Ring Tuyere

Double Air Ring Tuyere

In the plastic packaging industry, film manufacturers mainly face two challenges: reducing material waste and increasing production output per hour.
Send Inquiry

Why Partner With Us



In the plastic packaging industry, film manufacturers mainly face two challenges: reducing material waste and increasing production output per hour.
The Double Air Ring Tuyere is designed to replace traditional single-ring cooling systems. It provides a better balance between bubble stability and rapid cooling, helping film production lines achieve more stable operation and higher efficiency.

  • Factory-direct supply with stable pricing for distributors
  • OEM/ODM customization available for different extruder designs



Key Problems and Solutions



Common Production Issues

Technical Solution

Result / Improvement

Uneven film thickness

Precision air outlet design with independent upper and lower adjustment ensures balanced airflow distribution

Reduces thickness deviation and improves roll consistency

Limited production speed

Dual airflow structure improves overall heat dissipation across the bubble surface while maintaining bubble stability

Enables higher line speed without compromising process stability

High scrap rate and material waste

Stable airflow reduces bubble oscillation, necking, and crystallization line fluctuation

Reduces startup waste and raw material loss (PE/PP)

Poor film appearance quality

Uniform cooling reduces surface defects and haze formation

Improves film transparency and surface smoothness for packaging-grade applications



Structure and Working Principle



The system uses a dual-loop air control structure. Each air ring operates independently to manage different cooling stages of the film bubble.


Upper Air Ring
Provides secondary cooling after bubble formation.
Helps stabilize film thickness and improve surface quality.


Lower Air Ring
Provides initial cooling immediately after extrusion.
Stabilizes the bubble and controls early expansion behavior.


This two-stage cooling method reduces uneven cooling issues found in single air ring systems and improves overall production stability.



Technical Features and Material Compatibility



CNC-machined from high-strength aluminum alloy
Corrosion-resistant surface treatment for long-term use
Airflow balancing tested before shipment



Compatible with multiple resin types:
LDPE / LLDPE / HDPE (bags, agricultural films)PP / IPP (high-clarity packaging films)

Recycled and biodegradable materials





Technical parameters



Applicable die head diameter

100 mm – 1500 mm (custom available)

Material

Aluminum alloy / anodized surface

Adjustment type

Manual lip adjustment / optional automatic version

Film thickness range

0.01 mm – 0.25 mm



FAQ



Q: What is the main function of the Double Air Ring Tuyere?

A: It provides dual-stage cooling to improve bubble stability and film quality during blown film extrusion.

Q: What materials can it be used with?

A: It is suitable for PE, PP, and other common blown film materials.

Q: Is it compatible with existing blown film machines?

A: Yes, it can be adapted to most standard blown film extrusion systems with proper dimensional matching.

Q: What is the typical delivery time?

A: Standard lead time is 7–20 working days depending on customization requirements.

Q: What is the MOQ?

A: MOQ is 1 set for testing or sample orders; bulk pricing is available for larger quantities.

Q: What payment terms are supported?

A: T/T, L/C at sight, and Trade Assurance for smaller or online orders.

Q: What trade terms do you support?

A: EXW, FOB, CIF, and CFR depending on buyer preference.

Q: How is the product packaged?

A: Anti-rust film protection + foam cushioning + export-grade wooden case for safe international shipping.

Q: What quality guarantee is provided?

A: 12-month warranty under normal operating conditions with technical support included.

Q: Do you provide certification?

A: Production follows ISO-based quality control standards, and related compliance documents can be provided if required.

Q: Do you support customization?

A: Yes, including diameter, airflow structure, and material configuration based on machine requirements.
